ELECTROMAGNETISM SIMULATOR

See the
invisible field.

Move charges, magnets and currents to see invisible electromagnetism at work.
From electric fields, capacitors and circuits to magnetic fields, induction, generators, transformers and EM waves — 12 simulations you can touch and explore.

Download on theApp Store Get it onGoogle Play

Free12 simulations73 languagesiPhone · iPad · Android

12simulations

3categories

$0no in-app purchases

73languages

Simulations

12 simulations

Three categories: electricity and current, magnetism and induction, and AC and electromagnetic waves. Drag and slide to see fields and currents change instantly.

Electricity and current

Electric Field

Charges and field lines

Capacitor

Charging and time constant

Circuit

Ohm's law

Ion Conduction

Ions in an electrolyte

Magnetism and induction

Magnetic Field

Magnets and field lines

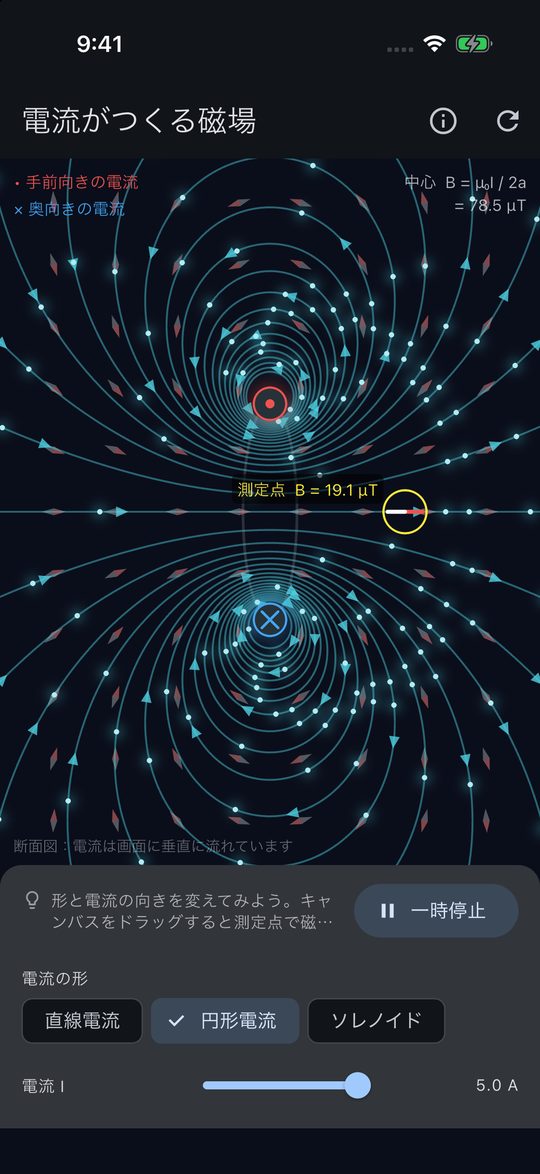

Field of a currentNEW

Right-hand rule

Hall Effect

Carriers bent by a field

Induction

EMF from a moving magnet

AC and electromagnetic waves

Generator

Rotating coil and AC

Transformer

Turns ratio and voltage

RLC AC circuitNEW

Phase shift and resonance

EM Wave

Waves of E and B

Screenshots

Touch, observe, understand

Place and drag charges and magnets or move a slider, and the field lines and currents respond in real time.

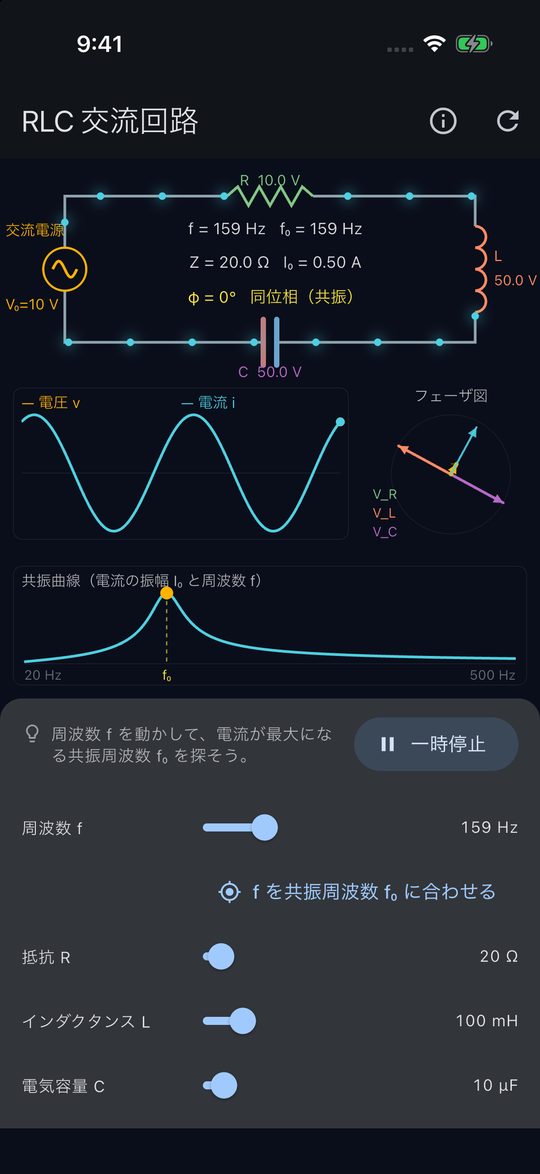

**Resonance: the current peaks**Waveforms, phasors and the resonance curve

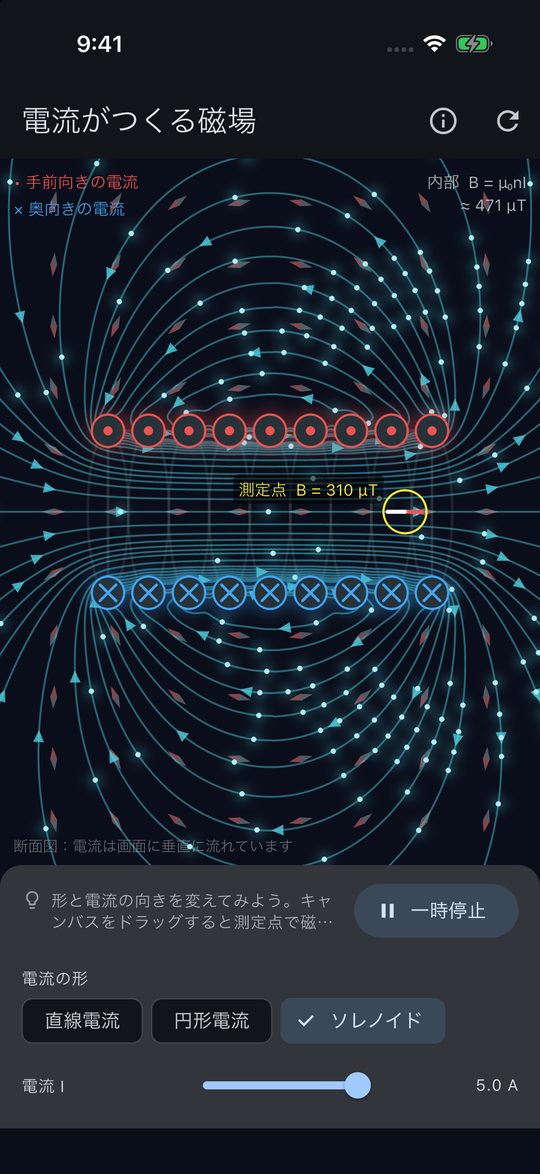

**Nearly uniform inside a solenoid**Field lines just like a bar magnet

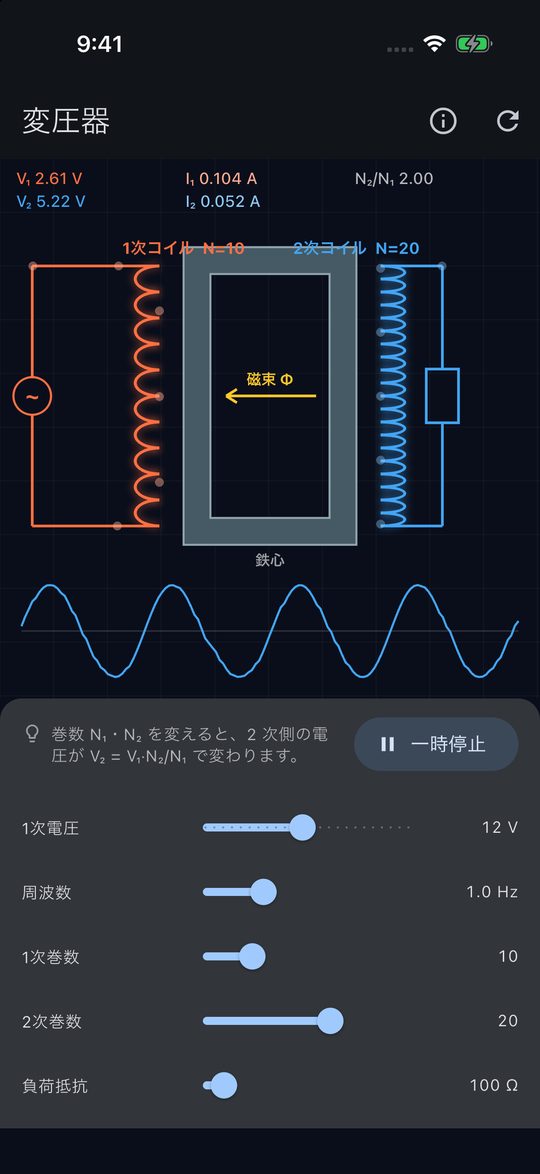

**Turns ratio sets the voltage**See V₂ = V₁·N₂/N₁ in the waveforms

Features

Built for learning

Hands-on

Tap to place charges and magnets, drag to move them, and change voltage, resistance or coil turns with sliders.

Explanations with formulas

Every screen explains the physics and formulas behind it, from Coulomb's law to electromagnetic waves.

Easy to read and use

Dark and light themes, landscape, iPad and tablets are all supported.

73 languages

English, Japanese, Chinese, Korean, Spanish, Arabic and 67 more. The app follows your device language automatically.

Pricing & ads

The app is free. There are no in-app purchases, subscriptions or paid unlocks.

A Pangle banner ad is shown at the bottom of the screen. On iOS, the App Tracking Transparency (ATT) prompt appears at launch, and ads are personalized only if you allow tracking. On Android, the app asks once whether ads may be personalized. Either choice can be changed later from "About" > "Ad settings".

Requirements: iPhone and iPad with iOS 15.0 or later; Android 7.0 (API 24) or later phones and tablets.

Electromagnetism in your pocket.
